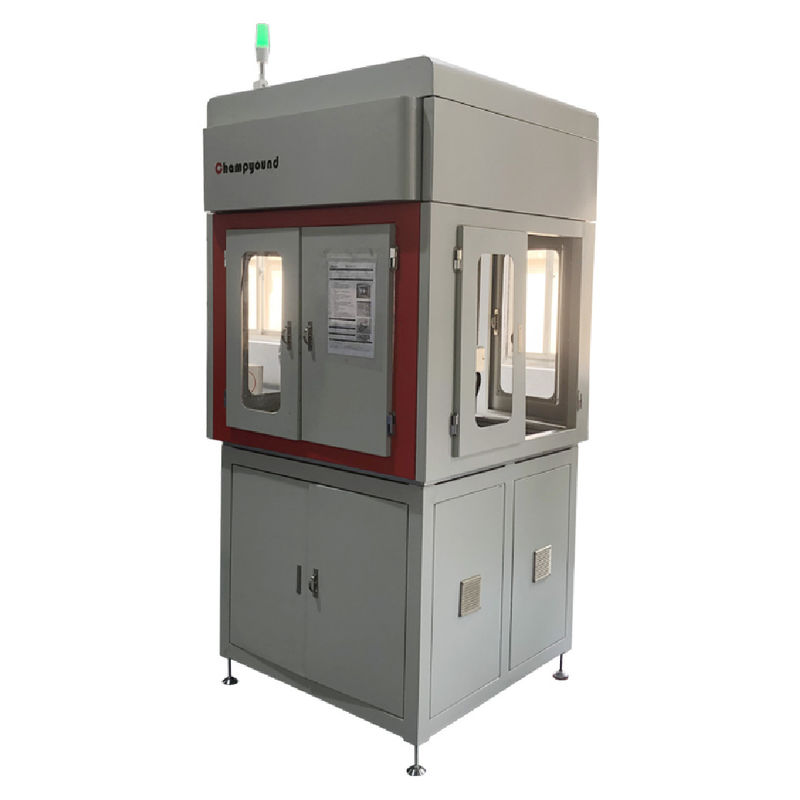

Flat Wire Stator High-Precision Laser Varnish Stripping Machine

Flat Wire Stator High-Precision Laser Varnish Stripping Machine

1. Descriptions:


The Flat Wire Stator Laser Paint Stripping Machine is designed for precision paint removal on flat wire stators, ensuring optimal insulation quality for high-performance electric motors. This advanced machine utilizes PLC control and a user-friendly touchscreen interface for easy operation and real-time process adjustments.

With the capability to adjust laser power and wavelength to match various paint types and base materials, it ensures efficient and effective paint stripping without damaging the stator. The machine's high repeat accuracy of ±0.03mm and work range of 25-70mm make it suitable for a wide range of stator sizes, while its pulsed laser and high-speed scanning technology allow for rapid and thorough paint removal, preserving the integrity of the underlying layers.

2. Specifications:


3. Advantages:

1. In the laser paint removal process, there is no direct contact between the equipment and the workpiece, avoiding potential damage from physical friction and mechanical stress, and maximizing the protection of the structural integrity of the flat wire motor.

2. The laser paint removal process does not generate chemical waste or harmful gases, causing no environmental pollution and meeting environmental protection requirements.

3. The laser parameters, such as power, frequency, and scanning speed, can be flexibly adjusted through programming to adapt to paint film thicknesses of different specifications.

4. Due to the concentrated laser energy and short action time, the thermally affected area on the substrate of the flat wire motor is minimal, effectively ensuring that the material properties remain unaffected.

5. It can be integrated with automated production lines to achieve unattended continuous operation, reducing labor costs and improving the stability and reliability of production.

​4. Production Line Profile:

The Champyound motor stator line is widely used for the production of many types of motor stators and consists of several machines such as wire forming machines, press-in machines, widening machines, head twisting machines, flat cutting machines and welding machines. Each machine in the stator line is independent and can also be connected to a conveyor belt.

5. OEM/ODM Profile:

Champyound is a professional and dynamic team, comprising experienced engineers and skilled professionals. Equipped with advanced machinery, stringent process controls, and an extensive service network, we are dedicated to delivering the most optimal solutions for flat wire motor manufacturing to our customers.

6. R＆D Profile:

Boasting excellent service, a professional team, and reliable quality, Champyound offers a wide range of technical consulting and turnkey project services for the manufacturing of AC motors, DC motors, and brushless DC motors. Our services encompass motor cost evaluation, manufacturing technology, staff training, and comprehensive turnkey projects.
